Displacement Due to an Infinitesimal Rotation
Rotating Reference Frame
Application

Displacement Due to an Infinitesimal Rotation

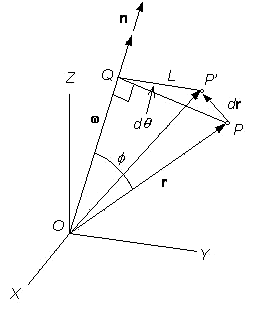

Figure 1 shows the displacement of point P due to angular velocity w. The displacement due to a small amount of rotation (dq) is denoted as dr in the figure. During the rotation point P follows a circular path the center of which is located at point Q. The radius of this circular path can be described as

    Figure 1

   [1]

where n =  the unit vector of angular velocity w. For a small dq, the displacement vector is perpendicular to both vectors n and r, thus,

   [2]

where u = the unit vector of displacement vector dr. The length of displacement vector dr is equal to the length of the arc confined by points P and P':

   [3]

Therefore, the displacement vector can be expressed as

   [4]

where dq = the angular displacement vector. In other words, the displacement due to rotation about an axis of rotation is equal to the cross product of the angular displacement vector and the position vector.

 Top

Rotating Reference Frame

Now, let's consider a slightly more complex situation. Figure 2 shows a rotating reference frame, the X'Y'Z' system, which rotates at an angular velocity of w. The inertial reference frame, the XYZ system, and the rotating frame share the origin together. The displacement of point P to P' is denoted as dr in the figure. Displacement vector dr can be split into two elements: drR and dr'. Vector drR is the displacement due to the rotation of the point with the rotating frame while dr' is the remainder of the displacement. Thus,


   [5]

Since drR is due to the rotation of the point with the rotating frame, this displacement component won't be noticed within the rotating frame. Rather, dr' is the displacement of point P observed in the rotating frame and is in fact the displacement of point P relative to the rotating frame.

Substituting [4] into [5], one can obtain

   [6]

or

   [7]

Thus, the velocity of a point observed in the inertial frame is the sum of the velocity due to the rotation of the rotating frame and the velocity observed in the rotating frame.

One can rewrite [7] to

   [8]

where []rot = vector observed in the rotating frame. [8] can be generalized for an arbitrary vector V as

   [9]

 Top

Application

[9] is very useful in computing mechanical quantities of a rigid body since all points in the body rotates with the local reference frame fixed to the body. Let's apply [9] to computation of the torque acting on a rigid body. From [6] of Inertia Tensor, the angular momentum of a rigid body about its CM is

   [10]

Therefore:

   [11]

since the inertia tensor of the body changes as the body rotates in the inertial frame's perspective. Computing the time-derivative of the inertia tensor is not a simple job to do. Now, applying [9] instead, one can obtain

   [12]

and [12] can be further reduced to

   [13]

since the inertia tensor observed in the rotating frame (ICM) does not change as the body rotates. ar shown in [13] is the angular acceleration of the body relative to the rotating frame. Applying [9] to angular velocity:

   [14]

that is, the angular acceleration observed in the fixed frame is equal to that observed in the rotating frame of the body. Substituting [14] into [13], one can obtain

   [15]

Assuming the axes of the rotating reference frame fixed to the body are principal axes, from [2] of Principal Axes[15] reduces to

   [16]

[16] is the so-called Euler's equations for the motion of a rigid body. See Joint Torque for an example of using [16].
